Jiulong provides compact DC blower solutions for applications where installation space and airflow resistance need to be considered together.
Widely used in Power Supplies, UPS, Energy Storage Equipment, Communication Equipment and other equipment requiring reliable airflow.
Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Product Category | Series | Size | Frame Material | Impeller Material | Lead Wire | Ball Bearing Life | Sleeve Bearing Life | Operating Temperature | Storage Temperature | Special Options |

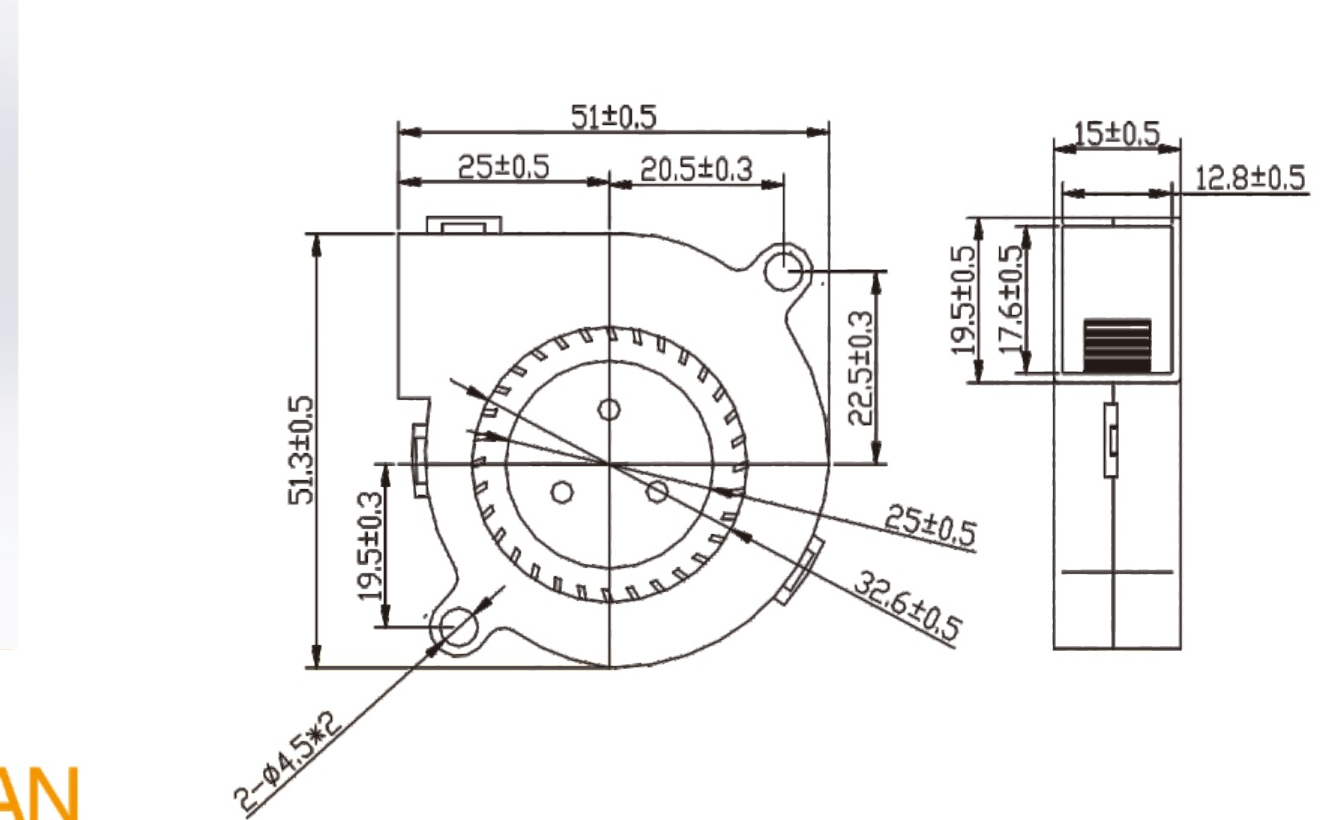

| DC Centrifugal Fan | 5015 | 51 × 51 × 15mm | Plastic (94V-0) | Plastic (94V-0) | UL1007 AWG #24 or equivalent; (+) red, (-) Black | 70,000 hours at 40°C | 30,000 hours at 40°C | -10–70°C (Non-condensing) | -40–70°C (Non-condensing) | AS, FG, RD, PWM, TC, IP55 |

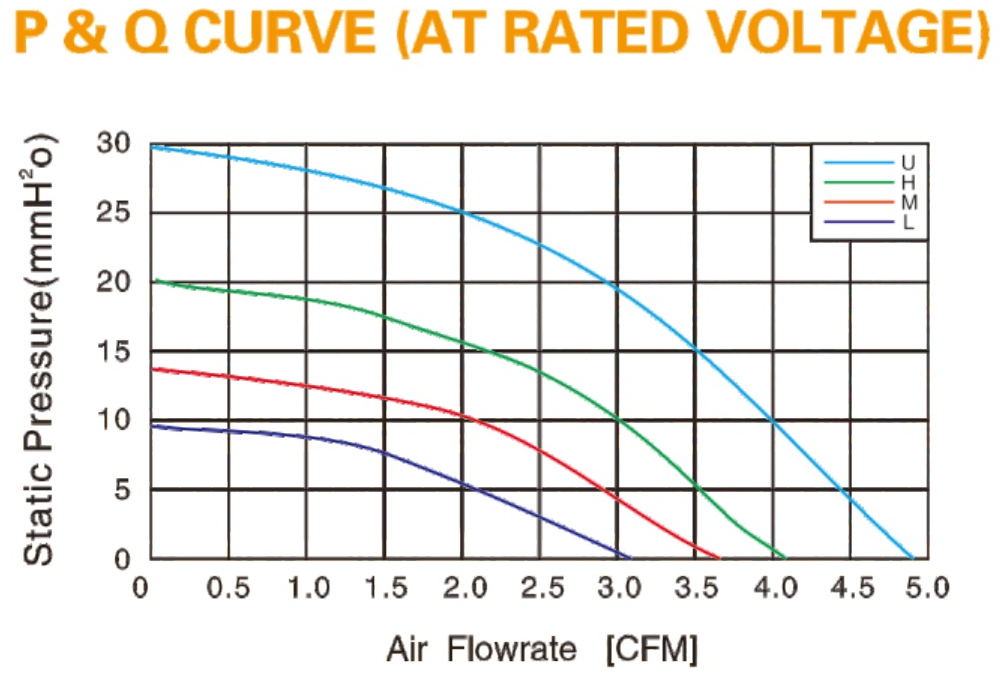

| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
| JL5015U12Y | 12 | 6–13.2 | 0.28 | 0.25 | 3.00 | 7500 | 0.136 | 4.82 | 1.176 | 29.87 | 47.9 |
| JL5015H12Y | 12 | 6–13.2 | 0.17 | 0.15 | 1.80 | 6500 | 0.116 | 4.10 | 0.803 | 20.40 | 44.7 |
| JL5015M12Y | 12 | 6–13.2 | 0.13 | 0.11 | 1.32 | 5500 | 0.101 | 3.57 | 0.556 | 14.12 | 40.2 |
| JL5015L12Y | 12 | 6–13.2 | 0.1 | 0.08 | 0.96 | 4500 | 0.084 | 2.97 | 0.357 | 9.07 | 34.9 |
| JL5015U24Y | 24 | 12–26.4 | 0.16 | 0.25 | 6.00 | 7500 | 0.136 | 4.82 | 1.176 | 29.87 | 47.9 |
| JL5015H24Y | 24 | 12–26.4 | 0.12 | 0.11 | 2.64 | 6500 | 0.116 | 4.10 | 0.803 | 20.40 | 44.7 |
| JL5015M24Y | 24 | 12–26.4 | 0.1 | 0.09 | 2.16 | 5500 | 0.101 | 3.57 | 0.556 | 14.12 | 40.2 |
| JL5015L24Y | 24 | 12–26.4 | 0.08 | 0.07 | 1.68 | 4500 | 0.084 | 2.97 | 0.357 | 9.07 | 34.9 |
