Jiulong provides explosion-proof axial fan solutions in DC and EC configurations, designed around specific application, airflow and protection requirements.
Widely used in Oil & Gas, Petrochemical, Chemical Industry, Paint & Coating and other equipment requiring reliable airflow.
Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Product Category | Series | Size | Frame Material | Impeller Material | Lead Wire | Ball Bearing Life | Sleeve Bearing Life | Operating Temperature | Storage Temperature | Special Options |

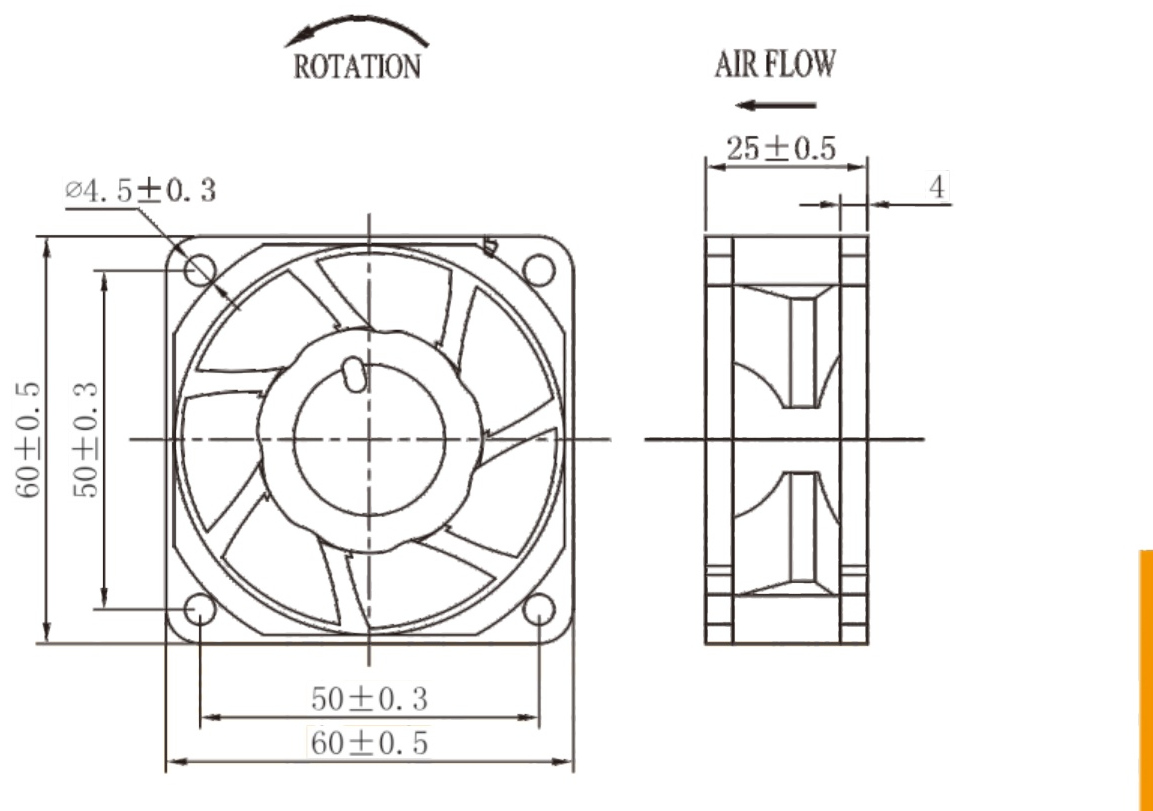

| FBD Axial Fan | 6025 | 60 × 60 × 25mm | Plastic (94V-0) | Plastic (94V-0) | UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black | 70,000 hours at 40°C | 30,000 hours at 40°C | -10–70°C (Non-condensing) | -40–70°C (Non-condensing) | AS, IP68 |

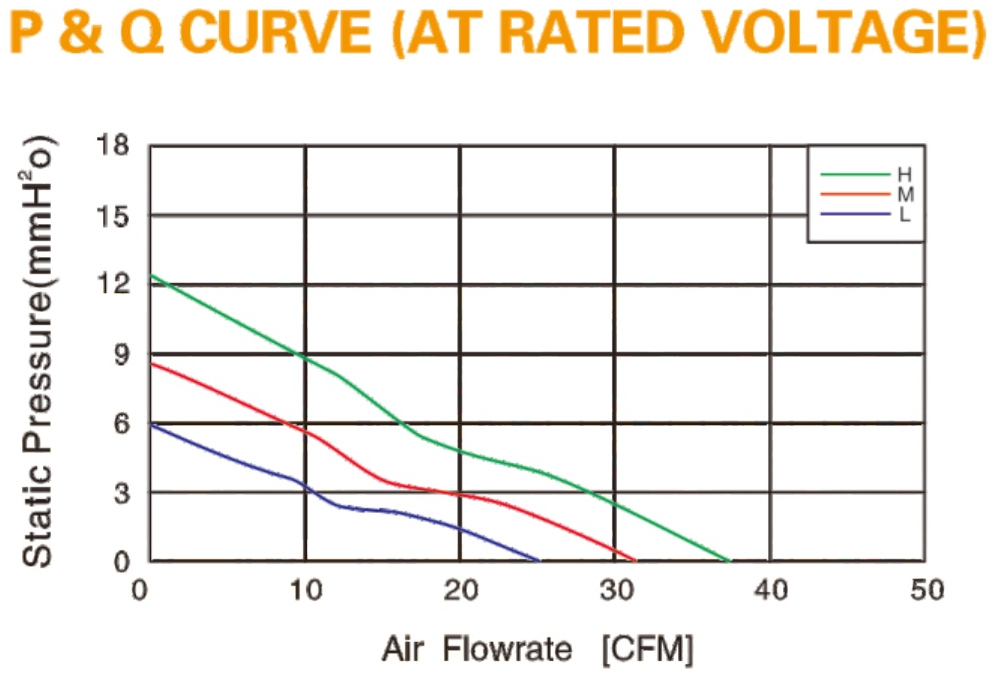

| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
| FBD6025H12B | 12 | 7–13.2 | 0.3 | 0.27 | 3.24 | 6000 | 1.021 | 36.06 | 0.473 | 12.01 | 43.9 |
| FBD6025M12B | 12 | 7–13.2 | 0.24 | 0.21 | 2.52 | 5000 | 0.851 | 30.05 | 0.263 | 8.34 | 40.0 |
| FBD6025L12B | 12 | 7–13.2 | 0.2 | 0.18 | 2.16 | 4200 | 0.715 | 25.25 | 0.189 | 5.89 | 36.7 |
| FBD6025H24B | 24 | 14–26.4 | 0.2 | 0.18 | 4.32 | 6000 | 1.021 | 36.06 | 0.473 | 12.01 | 43.9 |
| FBD6025M24B | 24 | 14–26.4 | 0.14 | 0.12 | 2.88 | 5000 | 0.851 | 30.05 | 0.263 | 8.34 | 40.0 |
| FBD6025L24B | 24 | 14–26.4 | 0.1 | 0.09 | 2.16 | 4200 | 0.715 | 25.25 | 0.189 | 5.89 | 36.7 |
| FBD6025H48B | 48 | 36–52.8 | 0.12 | 0.1 | 4.8 | 6000 | 1.021 | 36.06 | 0.473 | 12.01 | 43.9 |
| FBD6025M48B | 48 | 36–52.8 | 0.09 | 0.08 | 3.84 | 5000 | 0.851 | 30.05 | 0.263 | 8.34 | 40.0 |
