Jiulong combines the pressure characteristics of centrifugal fans with EC motor technology to provide efficient and controllable airflow solutions for demanding cooling systems.
Widely used in Energy Storage Systems, UPS, Power Electronics, EV Charging and other equipment requiring reliable airflow.
Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Product Category | EC Centrifugal Fan – Single Inlet |
| Series | 108 |

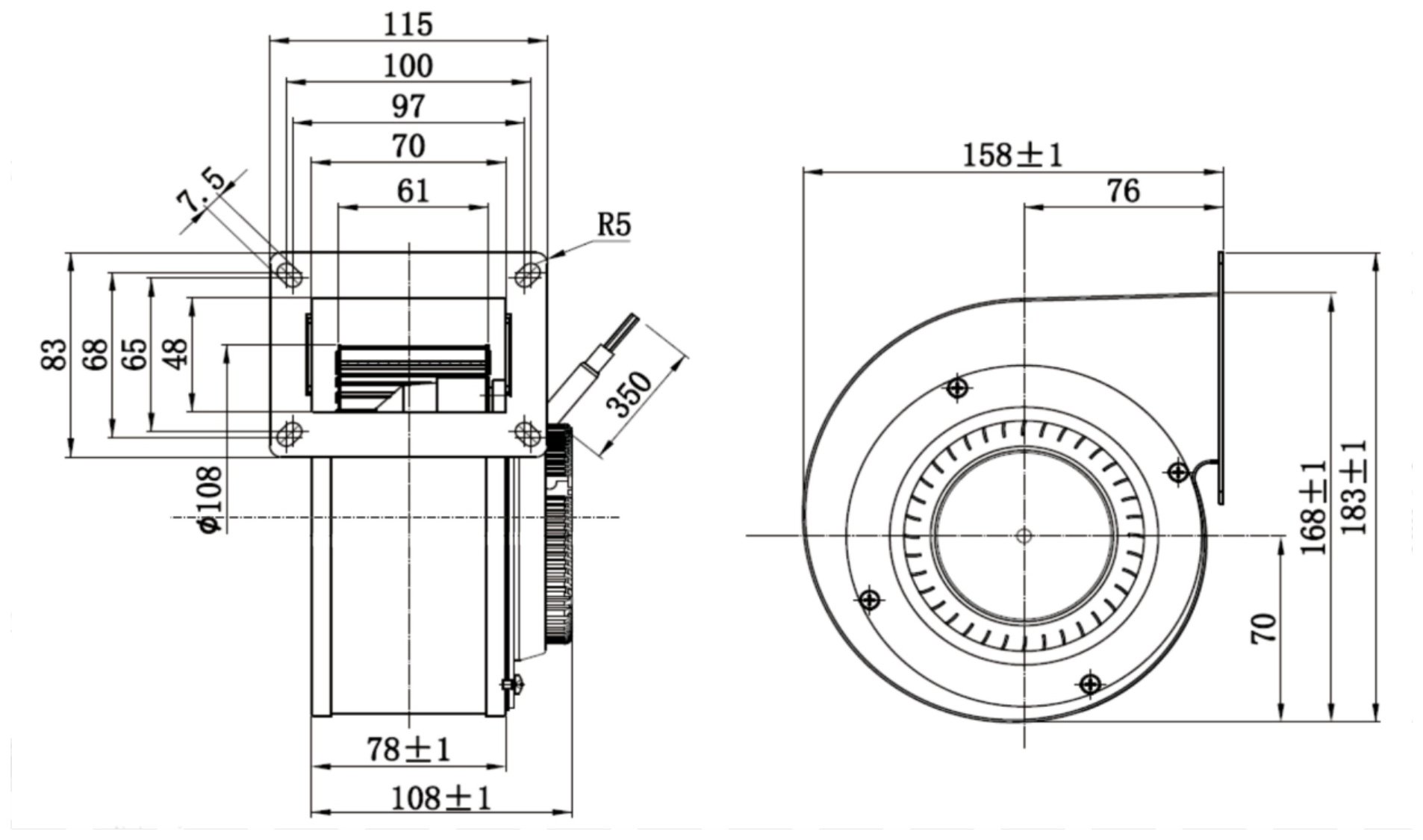

| Size | Φ108mm × 62mm |
| Air Flow | 170CFM |
| Noise | 61.5dB(A) |
| Impeller Material | Metal |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
| YED108AGA2-A01-W | 230 | 50/60 | 0.3 | 50 | 2400 | 170 | 43 | 61.5 |
