Jiulong combines EC motor technology with a broad range of fan configurations to provide efficient and controllable airflow solutions for modern cooling systems.
Widely used in Energy Storage Systems, UPS, Power Electronics, EV Charging and other equipment requiring reliable airflow.

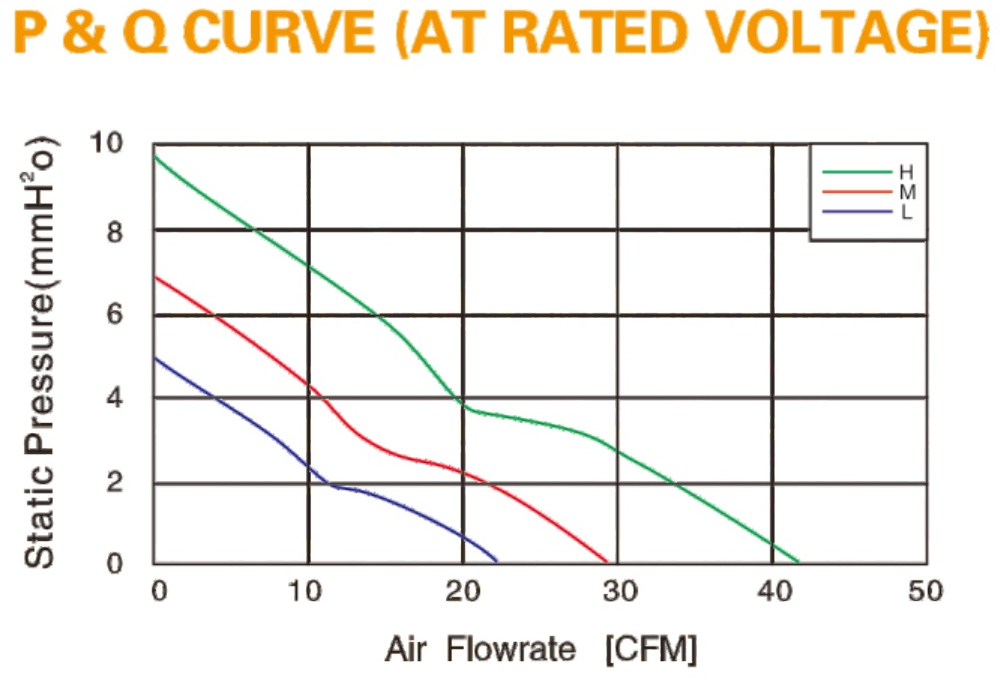

Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Product Category | Series | Size | Frame Material | Impeller Material | Lead Wire | Ball Bearing Life | Sleeve Bearing Life | Operating Temperature | Storage Temperature | Special Options |

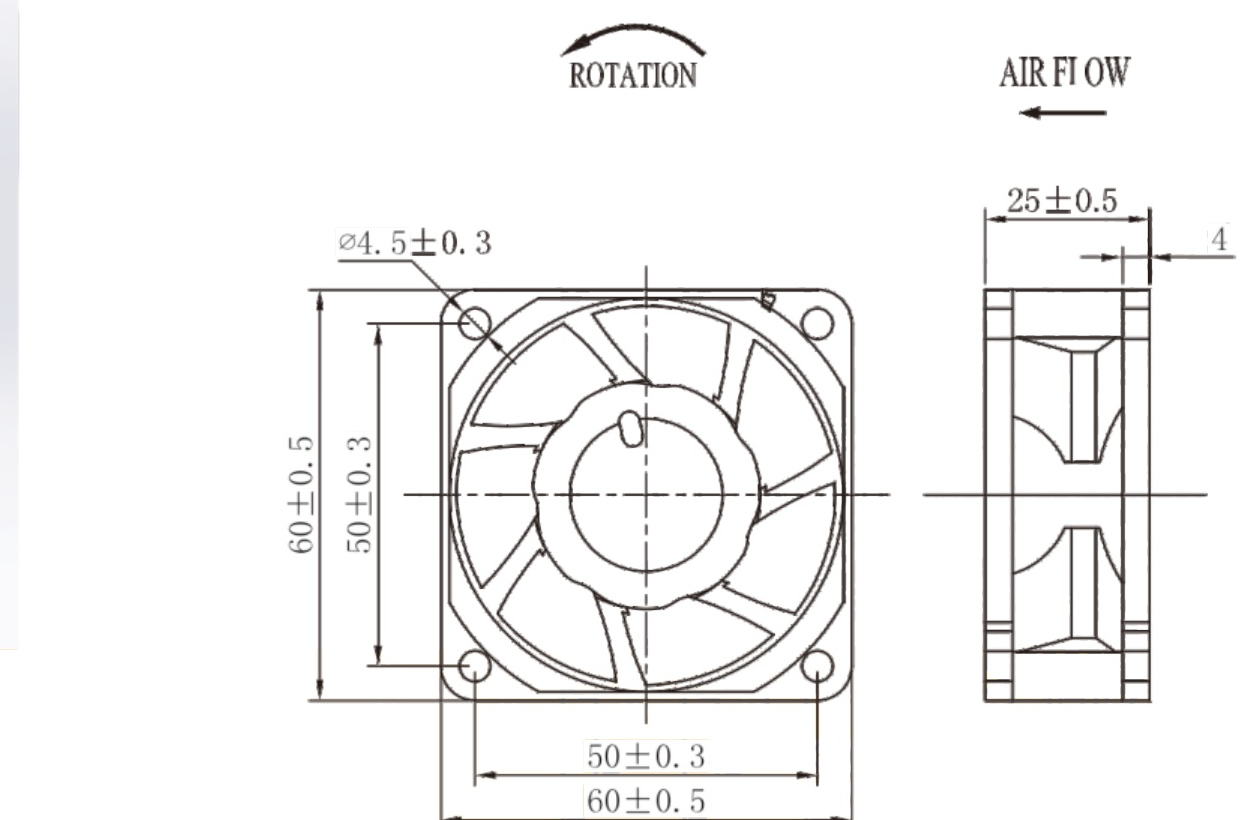

| EC Axial Fan | 6025 | 60 × 60 × 25mm | Plastic (94V-0) | Plastic (94V-0) | UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black | 70,000 hours at 40°C | 30,000 hours at 40°C | -10–70°C (Non-condensing) | -40–70°C (Non-condensing) | AS, IP54 |
| Model | Rated Voltage (ACV) | Operating Voltage (ACV) | Rated Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
| E6025HA2Y | 220 | 85–265 | 0.02 | 4.6 | 5800 | 0.996 | 35.17 | 0.378 | 9.6 | 43.9 |
| E6025MA2Y | 220 | 85–265 | 0.014 | 3.0 | 5000 | 0.83 | 29.32 | 0.263 | 6.67 | 40.0 |
| E6025LA2Y | 220 | 85–265 | 0.008 | 1.8 | 4200 | 0.668 | 23.58 | 0.189 | 4.81 | 35.7 |
