Jiulong provides compact DC blower solutions for applications where installation space and airflow resistance need to be considered together.
Widely used in Power Supplies, UPS, Energy Storage Equipment, Communication Equipment and other equipment requiring reliable airflow.
Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Product Category | DC Centrifugal Fan – Single Inlet |
| Series | 097 |

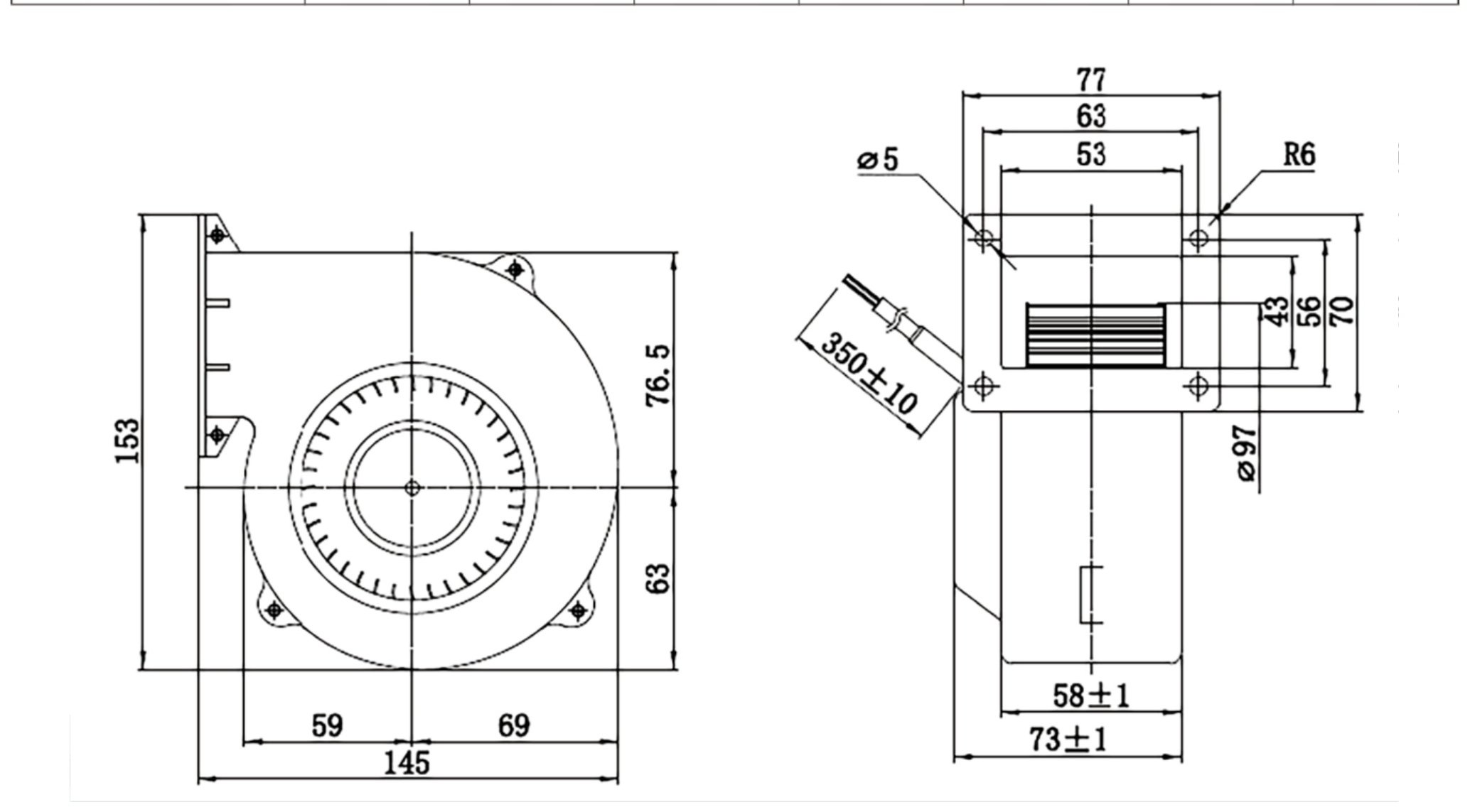

| Size | Φ97mm × 50mm |
| Air Flow | 93.6CFM |
| Noise | 55dB(A) |
| Impeller Material | Metal |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
| YDD097AE24-A01-W | 24 | 1.4 | 34 | 2500 | 93.6 | 57.1 | 55 |
| YDD097AE48-A01-W | 48 | 0.7 | 34 | 2500 | 93.6 | 57.1 | 55 |
