Jiulong combines robust metal construction with multiple industrial configurations to provide reliable airflow solutions for demanding equipment applications.
Widely used in Welding Equipment, Electrical Enclosures, Industrial Equipment, Power Equipment and other equipment requiring reliable airflow.

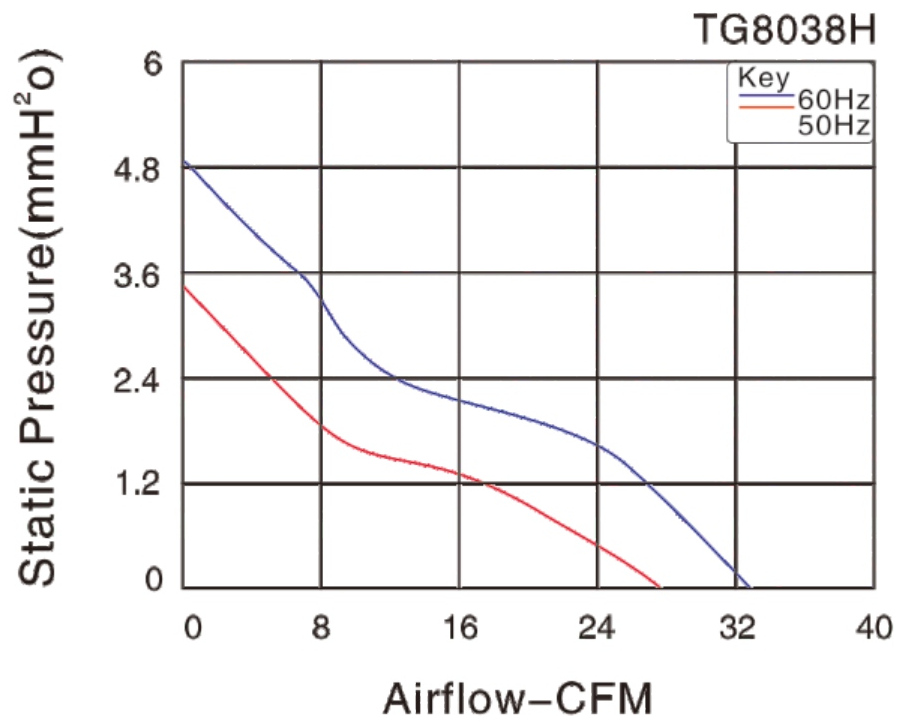

Full series specifications covering airflow, static pressure, speed, noise and power ratings are available in the parameters section below.
| Size | Airflow | Noise | Impeller Material | Frame | Terminals | Lead Wire | Motor | Operating Temperature |

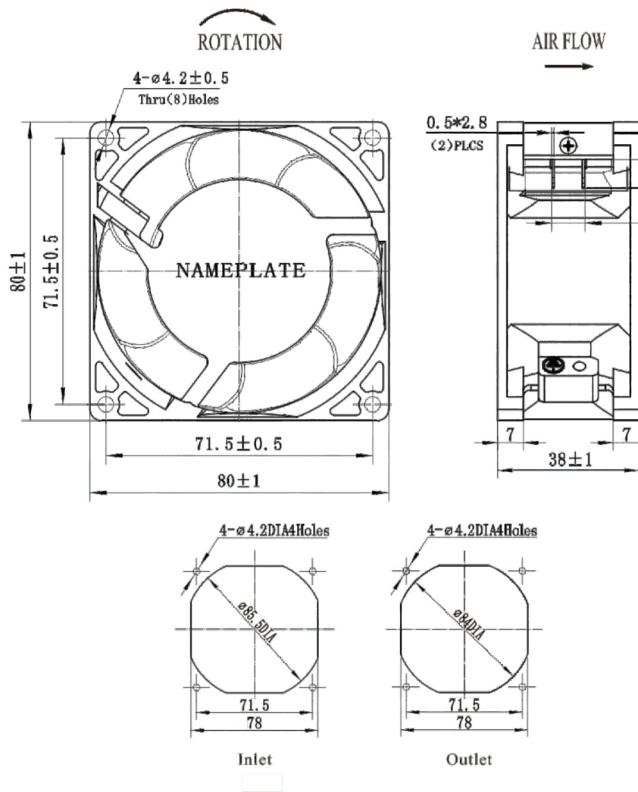

| 80mm×80mm×38mm | 28-34CFM | 30-34dB(A) | Metal | Aluminum Alloy | 0.5mm | AWG #22 UL1322 (Optional) | Shaded Pole and External Rotor Induction Motor | -10℃ ~ +65℃ |
| Model | Bearing System | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
| TG8038HA1B-7P | Ball | 100/125 | 50/60 | 0.18/0.15 | 16/14 | 2700/3250 | 30/34 | 28/34 | 1 | — |
| TG8038HA2B-7P | Ball | 200/240 | 50/60 | 0.09/0.1 | 16/14 | 2700/3250 | 30/34 | 28/34 | 1 | — |
